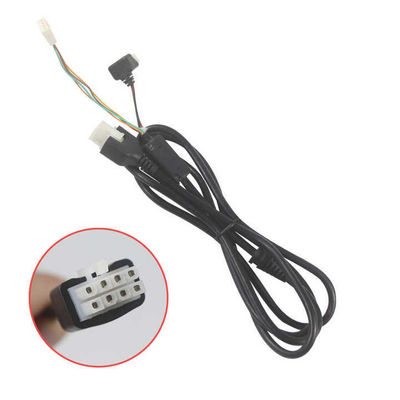

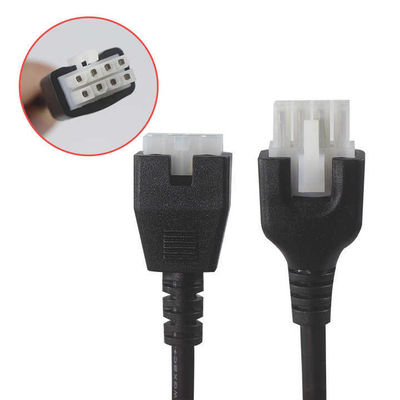

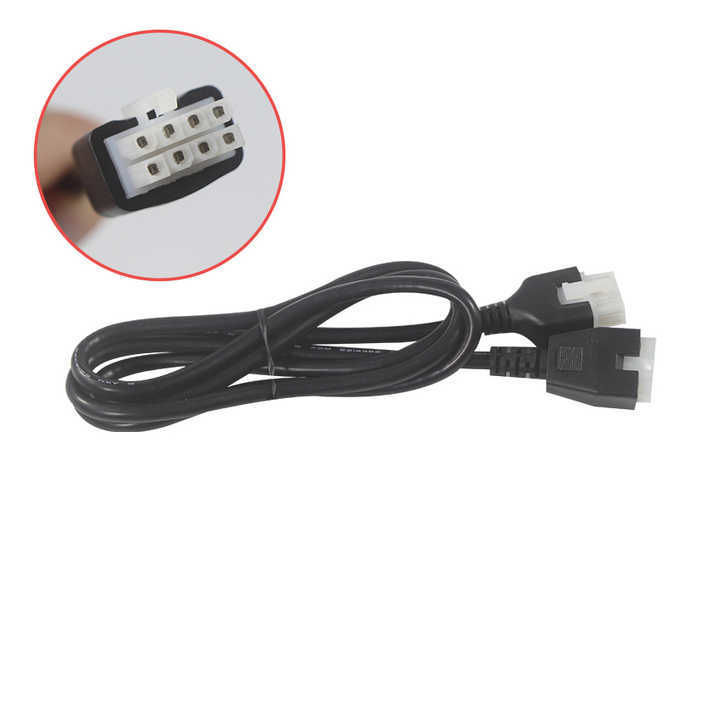

8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control

8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control
8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control 8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control 8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control 8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control 8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control 8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control

Imagem Grande :  8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control

Detalhes do produto:
Lugar de origem: CHINA
Marca: KUNCAN
Número do modelo: KC-8Pin-SL
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 500 peças
Preço: ＄1.68/Piece 500-900Pieces
Detalhes da embalagem: saco +carton do pe
Tempo de entrega: 16days
Termos de pagamento: L/C, D/A, D/P, T/T, Western Union
Habilidade da fonte: 1000 PCS por semana
Contato

8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control

descrição
Destacar:

LED Controller Signal Cable

,

8 Pin Power Signal Cable

,

Motor Control Signal Cable

8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control

Product Description

 Technical Specifications

Parameter Description
Product Name 8-Pin Power and Signal Cable with Split Leads
Connector Type Open-End / Custom 8-Pin Plug / Terminal / JST / Molex (Optional)
Pin Count 8 Conductors (4 Power + 4 Signal Optional)
Wire Type Multi-core, color-coded
Split Leads Ends divided for easy signal/power routing
Conductor Material Tinned Copper / Bare Copper
Wire Gauge 24AWG / 22AWG / 20AWG
Voltage Rating 5V / 24V DC (Max 5A per circuit)
Cable Jacket PVC / PU / Silicone (Optional)
Cable Length 3ft/4ft / Custom
Operating Temperature –20°C to +80°C


 Product Introduction

This 8-Pin Power and Signal Cable with Split Leads is designed for combined power and control transmission in compact systems. Ideal for LED controllers, industrial sensors, automation modules, and DC motor wiring, it provides separate wires for easy connection and clear circuit management.

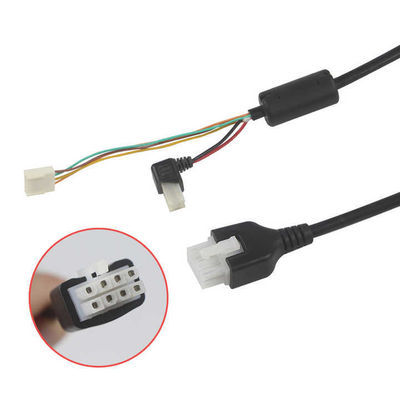

The split-lead design ensures fast wiring to terminals, boards, or connectors, especially in space-restricted or customized applications.

 Product Features

  • Multi-Core 8-Wire Configuration – Supports mixed power/signal circuits

  • Pre-Split Wire Ends – Easy to solder, crimp, or screw into terminals

  • Flexible Outer Jacket – High resistance to bending and abrasion

  • Optional Pin Mapping / Labeling – For faster installation

  • Custom Connector Termination Available

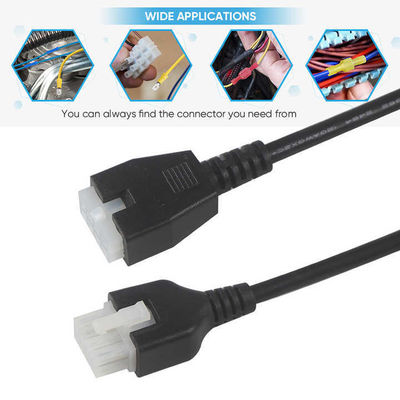

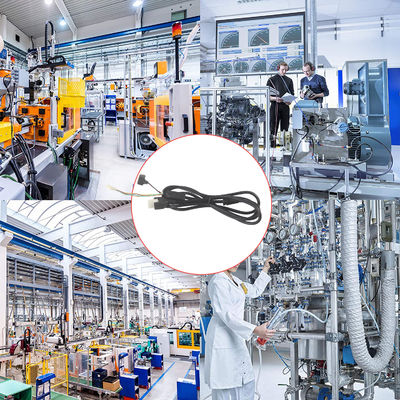

 Typical Applications

  •  LED Pixel Controller to Light Bar / Driver Board

  •  Motor Control Modules and Stepper Drivers

  •  Signal Interface for PLCs, Industrial Sensors

  •  Embedded Systems and Prototyping

  •  Low-voltage DC Distribution Projects

 Safety & Wiring Guidelines

  • Do not exceed voltage/current per conductor (typically 5A)

  • Ensure correct polarity and pin assignment for split wires

  • Use heat shrink or terminal caps for unused leads

  • For outdoor use, consider waterproof jacket customization

 OEM / ODM Options

Option Description
Connector Termination Bare Wire / JST / Molex / Terminal Block
Pin Count Options 6-Pin / 8-Pin / 10-Pin / Custom
Wire Gauge 24AWG / 22AWG / 20AWG / Mixed Gauge
Jacket Material PVC / PU / Silicone
Labeling Heat Shrink Tags, Colored Wires, Printed Codes
Packaging Poly Bag / Label Bag / Reel / Custom Box
8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control 08-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control 1

8-Pin Power and Signal Cable with Split Leads-Multi-Core DC Wiring Harness for LED Controller, Industrial Sensors, Motor Control 2


FAQ


Frequently Asked Questions (FAQ)

Q1. Are you factory or trade company?
A: We are factory of more than 16 years export experience.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. Samples ?
A: 2-5 pieces free samples are available, freight on you. Delivery time usually is 2-3 days. Customized samples will take 5-10 days.

Q5. What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 10-15 working days, for more QTY order, let's confirm when you place official order.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q7. How to ship out the cargo?
A: At your request, by sea, by express, all are available.
