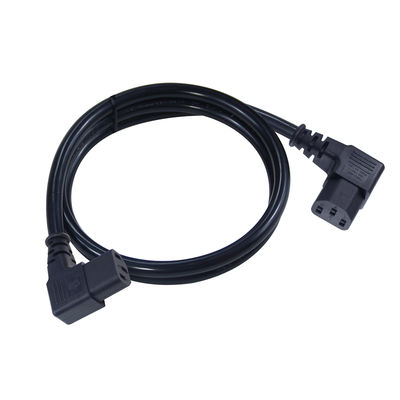

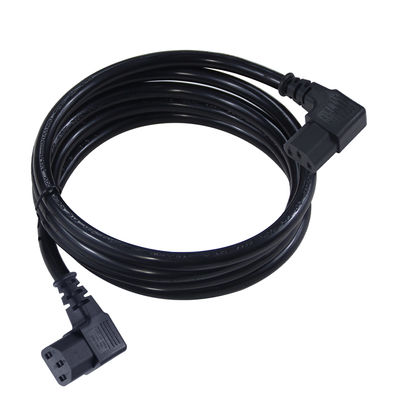

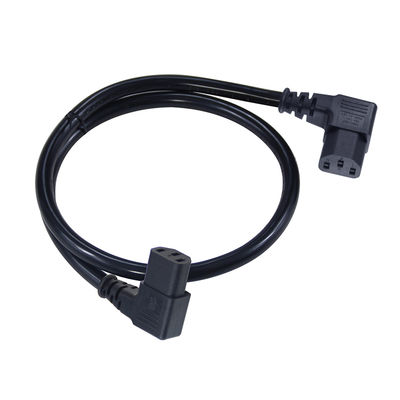

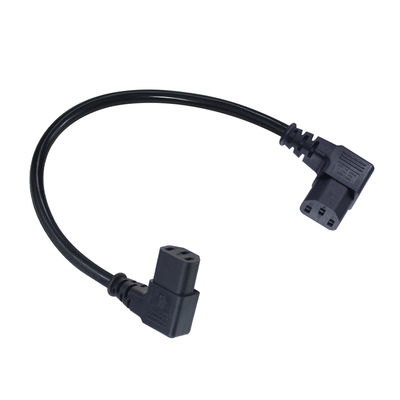

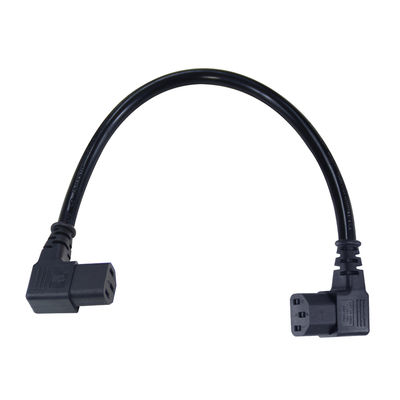

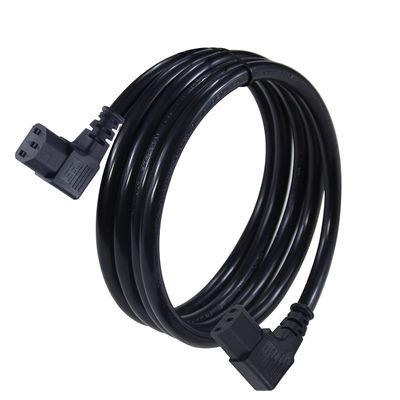

Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor

Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor
Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor

Imagem Grande :  Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor

Detalhes do produto:
Lugar de origem: China
Marca: KUNCAN
Número do modelo: KC-RA-C13
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 500 peças
Preço: $3.68/pieces 500-999 pieces
Detalhes da embalagem: Saco de PE + cartão
Tempo de entrega: 16days
Termos de pagamento: L/C, D/A, D/P, T/T, Western Union
Habilidade da fonte: 1000 PCS/semana
Contato

Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor

descrição
Destacar:

Server Monitor C13 Power Extension Cord

,

IEC 60320 C13 Power Cord

,

Receptacle C13 Power Extension Cord

Right-Angle C13 to C13 Power Extension Cord – 90 Degree IEC 60320 Plug to Receptacle Cable for PDU, Server, Monitor

Product Description

Technical Specifications

Parameter Description
Product Name Right-Angle C13 to C13 Power Extension Cord
Connector A IEC 60320 C13 Plug (90° Right-Angle)
Connector B IEC 60320 C13 Receptacle (90° Right-Angle)
Cable Type SJT / H05VV-F / H03VV-F (based on region)
Voltage Rating 250V AC
Current Rating 10A / 13A / 15A (customizable by region)
Wire Gauge 16AWG / 14AWG / 1.0mm² / 1.5mm²
Jacket Material PVC / Rubber / Custom
Cable Length 0.3m / 0.6m / 1m / 2m / Custom
Temperature Rating -20°C ~ +70°C
Color Options Black / White / Custom
Compliance RoHS / REACH (No brand or logo markings included)


 Product Introduction

The Right-Angle C13 to Right-Angle C13 Power Extension Cord is specially designed for use in tight rack environments, network cabinets, or behind-wall-mounted equipment, where traditional straight connectors can cause space and stress issues.

The dual 90-degree angle C13 connectors allow for a neat, flush-mounted power routing solution, preventing cable strain and ensuring reliable operation of servers, PDUs, monitors, and other IEC-compatible equipment.

 Key Features

  • Dual Right-Angle C13 Connectors – Saves space and improves cable management

  • IEC 60320 Compatible – Standardized for global data center & IT use

  • Flexible PVC Jacket – Durable and easy to route through racks or furniture

  • Multiple Gauge Options – For low to high-current applications

  • Custom Lengths Available – Short extension or long-distance routing

 Compatible Applications

  •  Desktop Monitors, Workstations

  •  PDU to Server Connections

  •  Rackmount Equipment

  •  Network Switches, Patch Panels

  •  AV or Office Cabinet Installations

 Installation & Safety Notes

  • Ensure connectors are aligned before insertion to avoid bent pins

  • Do not coil or sharply bend during use; follow bend radius guidelines

  • Use only with compatible IEC 60320 devices (C14/C15 ports)

  • For indoor use only

  • Match current/voltage requirements to device rating

 OEM / ODM Customization Options

Option Description
Connector Style Right-Angle / Left-Angle / Up-Angle / Down-Angle
Cable Type SJT / H05VV-F / H03VV-F / Rubber / Braided
Wire Gauge 16AWG / 14AWG / 1.0mm² / 1.5mm²
Jacket Color Black / White / Gray / Blue
Mold Color & Marking Custom molding, logo-free or with your branding
Packaging PE Bag / Tie Wrap / Retail Box / Logo Carton
 Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor 0Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor 1Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor 2Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor 3Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor 4
ac power cord


AC Power Cords | Shop Now for Reliable Solutions

AC Power Cords

Reliable solutions for TVs, computers, AC units, and more.

2-Prong AC Power Cord

Standard 2-prong power cord for small appliances and devices.

Length: 6ft | Voltage: 120V | Current: 10A

3-Prong AC Power Cord

Grounding 3-prong power cord for added safety.

Length: 6ft | Voltage: 120V | Current: 15A

TV AC Power Cord

Compatible with most TVs and monitors.

Length: 10ft | Voltage: 120V | Current: 5A

Universal AC Power Cord

Works with a variety of devices and appliances.

Length: 6ft | Voltage: 120V | Current: 10A

Why Choose Our AC Power Cords?

  • High-Quality Materials: Durable construction for long-lasting use.
  • Versatile Compatibility: Ideal for TVs, computers, AC units, and more.
  • Safety Certified: Meets industry safety standards for reliable performance.
  • Multiple Options: Available in 2-prong, 3-prong, and universal designs.

Frequently Asked Questions

What devices use AC power cords?

AC power cords are used in a variety of devices, including TVs, computers, gaming consoles, and AC units.

What is the difference between 2-prong and 3-prong AC power cords?

2-prong cords are ungrounded, while 3-prong cords include a grounding pin for added safety.

Do these power cords come with a warranty?

Yes, all our power cords come with a 1-year warranty for your peace of mind.

© 2023 Your Company Name. All rights reserved.

Company Information

Right-Angle C13 to C13 Power Extension Cord 90 Degree IEC 60320 Plug to Receptacle Cable for PDU Server Monitor 5

FAQ


Frequently Asked Questions (FAQ)

Q1. Are you factory or trade company?
A: We are factory of more than 16 years export experience.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. Samples ?
A: 2-5 pieces free samples are available, freight on you. Delivery time usually is 2-3 days. Customized samples will take 5-10 days.

Q5. What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 10-15 working days, for more QTY order, let's confirm when you place official order.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q7. How to ship out the cargo?
A: At your request, by sea, by express, all are available.
